What is Progen-CIS ？

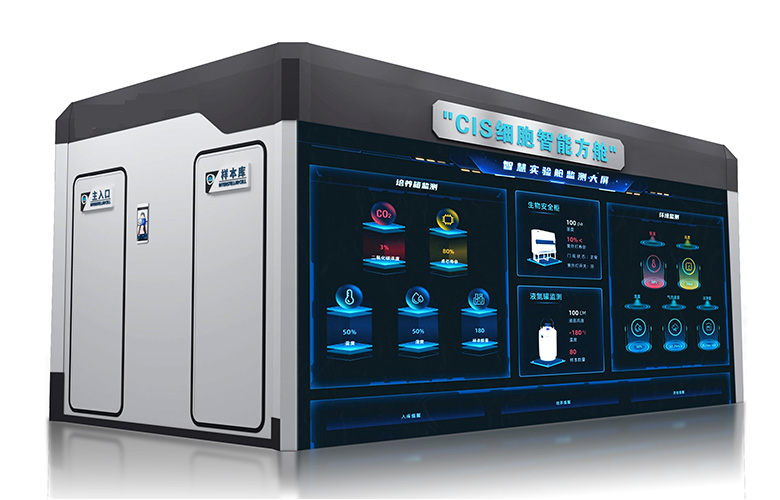

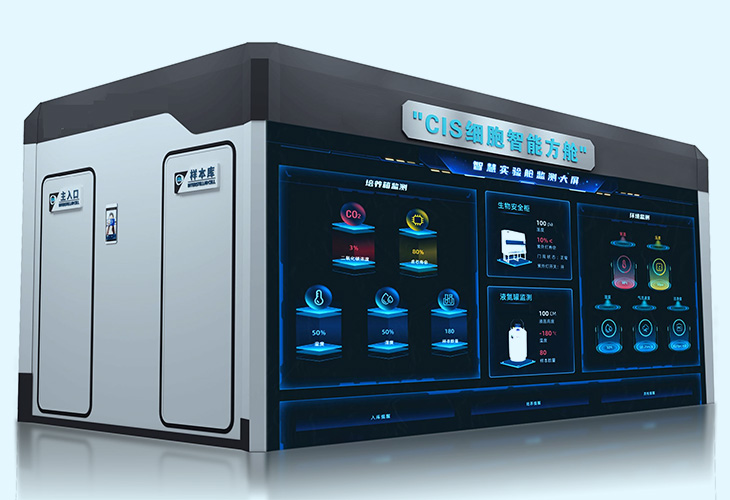

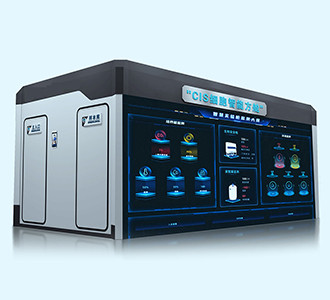

Progen Cell Intelligence Shelter (abbreviated as CIS) is a new-generation integrated solution for prefabricated cell preparation laboratories, independently developed by our company. This product highly integrates the core functions of traditional large-scale fixed GMP cell laboratories into standardized modular shelters, realizing the prefabrication, intelligence, miniaturization and mobility of biological laboratories, and completely subverting the construction mode of traditional laboratories.
Core Value Proposition
Highest Cleanliness Standard
Achieves GMP Class B+A cleanliness, certified by third-party test data, and meets the highest national requirements for cell preparation.
Rapid Deployment
World's first prefabricated laboratory construction. On-site installation takes only 48 hours, eliminating the traditional 3–6 month construction period.
Low-Threshold Operation
Requires a minimum footprint of only 3m × 6m and a minimum floor clearance of 2.6m. Operation can be performed by just 1 laboratory technician.
Ultra-Low EnergyConsumption
Energy consumption is less than 1/10 of traditional laboratories, greatly reducing long-term operating costs.
High Intelligence
Nine intelligent subsystems operate in coordination, supporting remote monitoring, full-process data traceability, and intelligent early warning.
High Reusability
Modular design with a secondary utilization rate of up to 99%. Equipment can be disassembled and relocated, preserving investment value.
One-Stop Solution
Provides a full set of services including hardware, software, technical training, supporting reagents and consumables, as well as seed cell supply.
Product Positioning
R&D labs & hospital cell research departments
Health testing labs & premium wellness research centers
Aesthetic skincare & skin age balance research institutes
Universities & research institutions
Cell biopreservation & preparation service centers
Detailed Introduction to CIS Products
Product Full Name
- Product Full Name:
- Cell Intelligence Shelter (CIS)
- Product Positioning:
- One-stop integrated solution of new-generation life science equipment for cell biomanufacturing
- Product Category:
- Professional Biological Laboratory Equipment/Prefabricated Clean Room
- Release Date:
- Officially launched globally on November 15, 2022 atthe 24th China International Hi-Tech Fair (CHTF).
Product Specifications & Parameters
- Cleanliness Standard
- GMP Standard Grade B+A (Third-Party Tested & Certified)
- Floor Area
- Minimum: 3m x 6m (from 18 square meters)
- Clear Height Requirement
- Minimum: 2.6m (can be satisfied by standard floors)
- Installation Period
- On-site assembly completed within 48 hours
- Energy Consumption Level
- Less than 1/10 of a traditional laboratory
- Operating Staffing
- Operable with a minimum of 1 laboratory technician
- Reusable Rate
- Secondary utilization rate as high as 99%
- Cabin Material
- Strucell P: High-speed rail carriage material (rigid cross-linked closed-cell PVC structural foam)
- Main System
- "Five Constants" Main Unit
(constant temperature, constant humidity, constant oxygen, constant cleanliness, constant quietness)
- Intelligent Management System
- Intelligent linkage of nine major subsystems (see Chapter 7 for details)
- Expansion Method
- Modular design allows for expansion at any time without production shutdown.
- Separation of Personnel and Cargo
- Separate access passages for personnel, materials and products, in full compliance with GMP requirements.
Supporting Software and Equipment
Integrated Technology SystemPharmaceutical-grade Spatiotemporal Traceability50+ intelligent devices
Core Technologies
Highest CleanlinessGMP Grade B+A
Cleanliness is a core indicator of cell preparation laboratories.The CIS meets the GMP Grade B+A cleanliness standard, which is the highest national requirement for cell preparation environments and the fundamental guarantee for ensuring the safety of cell products.
- Class B Background Area:A controlled environment for high-risk operation areas, where the number of static particles >0.5μm is ≤3,520/m².
- Class A Operation Area:Local protection for the critical operation zone (open cell manipula-tion), equivalent to ISO Class 5 standard.
- Certified by third-party measured data: Official inspection reports issued by authoritative third-party testing institutions, with authentic and reliable data and legal effect.
- Separation of Personnel, Materials and Goods In/Out: Strictly follows the GMP principle of separate flow for personnel and logistics to prevent cross-contamination.
First-of-its-Kind Prefabricated LaboratoryBuilt in 48 Hours
The CIS is the world's first prefabricated cell preparation laboratory, completely eliminating many drawbacks of traditional construction by renovation.
"Five Constants" Main UnitPrecision Environmental Control System
The CIS is equipped with an independently developed "Five Constants" main unit system, providing precise and stable physical environment support for cell preparation:
- Constant Temperature: Precisely controls the internal temperature to provide a qualified environment for cell preparation, preventing cell activity from being affected by tempera-ture fluctuations.
- Constant Humidity: Intelligently monitors and adjusts humidity inside the module, avoiding adverse effects on experimental operations and equipment caused by dry or overly humid conditions.
- Constant Oxygen: Accurately controls oxygen concentration to maintain an appropriate partial pressure of oxygen, meeting the culture requirements of different cell types.
- Constant Cleanliness: Sustains GMP Grade B+A cleanliness continuously. Combined with intelligent disinfection and air purification systems, it prevents microbial contamination throughout the process.
- Constant Quietness: Adopts a low-noise design to provide a quiet and stable working en- vironment for precise experimental operations.
Strucell P Cabin Body Made of High-Speed Rail Carriage Material
The CIS adopts high-end Strucell P material as the core structural material of the cabin.It is a rigid cross-linked closed-cell PVC structural foam with excellent overall mechanical properties and stable chemical properties.It has been widely used in high-end fields such as wind power generation, rail transit, yachts, aerospace, and building energy efficiency.
Excellent sealing performance
Excellent airtightness ensures the stability of the clean environment inside the cabin and prevents the infiltration of external pollutants.
Good fatigue resistance
Resists fatigue damage during long-term use and ensures long-term structural integrity of the equipment.
Strong corrosion resistance
Resists corrosion from chemical reagents, disinfectants and other corrosive substances, extending the service life of the equipment.
Heat insulation and flame retardant
Excellent thermal insulation reduces energy consumption, and its flame-retardant properties meet laboratory safety standards.
High design flexibility
Supports customized dimensions and layout design to meet different site and functional requirements.
Light weight and high strength
Lighter than comparable materials for easy transportation and installation, while ensuring structural strength.
Supporting Systems and Overall Solutions
Nine Intelligent SubsystemsThe CIS is equipped with the company's independently developed intelligent module management system, which realizes comprehensive digital control over the entire cell preparation process through the highly intelligent linkage of nine subsystems:
| Subsystem Name | Core Functions | Value Performance |
|---|---|---|
| Pharmaceutical-Grade Spatiotemporal Traceability System | Accurately record and trace the entire cell preparation process in both time and space dimensions. | Meets GMP requirements and supports compliance audits and quality traceability. |
| Full-Process Early Warning System | Monitor key parameters in real time and automatically issue multi-level alerts for abnormalities. | Prevents operational risks in a timely manner and safeguards the quality of cell products. |
| Multi-Platform Visual Intelligent Control System | Support synchronized visual control via PC, mobile devices and module monitoring screens. | Enables remote monitoring anytime and anywhere, improving operational flexibility. |
| Intelligent Disinfection & Air Purification System | Automatically execute disinfection procedures, continuously purify indoor air and maintain cleanliness level. | Automatically maintains a clean environment without manual attendance, reducing risks from human intervention. |
| Intelligent Constant Temperature and Humidity System | Precisely control and maintain indoor temperature and humidity within set ranges. | Provides a stable physical environment for cell preparation and ensures experimental reproducibility. |
| Intelligent Sample & Consumable Management System | Digitally register, track and manage cell samples and laboratory consumables in inventory. | Prevents sample mix-ups and achieves refined management of consumables. |
| Personnel Access Management System | Control personnel access permissions,record entry/exit logs and prevent unauthorized access. | Ensures operational safety and complies with GMP personnel management requirements. |
| Intelligent Biological Detection System | Detect and analyze key biological indicators such as cell viabili-ty and concentration in real time. | Tracks cell status in real time and provides data support for release decisions. |
| Intelligent SOP Management System | Digitally manage standard operating procedures (SOPs) and guide operators to follow protocols. | Reduces human errors and ensures operational consistency and compliance. |

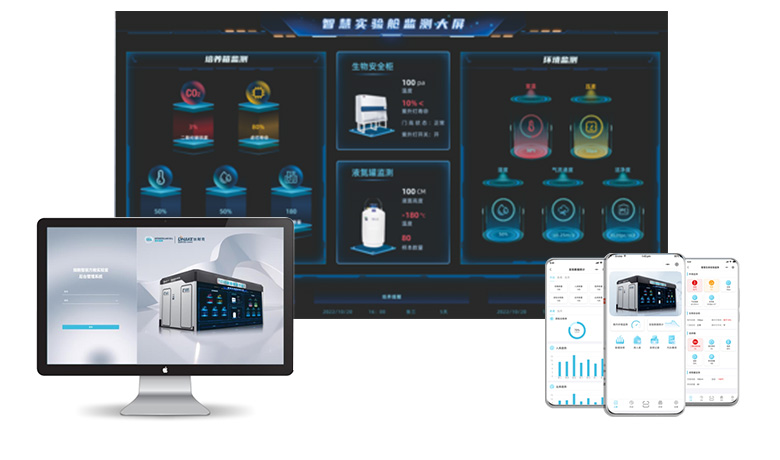

Multi-Terminal Management Platform
The intelligent module management system supports the following three major terminal interfaces to achieve seamless collaborative management:
- PC Management System: Full-featured desktop operation interface
- Cell Intelligent Module Monitoring Screen: Dedicated touch display installed inside the module;
- Mobile APP Control: The mobile APP supports remote real-time monitoring, early warning push notifications, and key parameter viewing, enabling real-time grasp of the module's oper-ation status anytime and anywhere.
Comprehensive Comparison with Traditional Laboratories
Comprehensive Comparison TableThe following is a comprehensive comparison between the CIS and traditionally constructed cell preparation laboratories, directly demonstrating the disruptive advantages of CIS:
| Comparison Dimensions | Traditional Cell Preparation Laboratory | CIS Cell Intelligence Shelter | Advantage Magnitude |
|---|---|---|---|
| Aseptic Cleanliness | Grade B + Grade C | GMP-compliant Grade B+A | Higher |
| Floor Clear Height Requirements | Above 4.5 meters | Minimum height: 2.6 m | Reduced by 42% |
| Construction / Installation Cycle | 3-4 months | 48 hours | Over 60 times faster |
| Reusability Rate | Almost 0% | 99% | Qualitative leap |
| Expansion Methods | Renovation during production shutdown(high cost) | Expandable at any time without halting production | Zero interruption |
| Energy Consumption Level | High energy consumption (benchmark: 100%) | < 1/10（<10%) | Savings of over 90% |
| Operating Staffing | 5-10 personnel | Minimum 1 operator | Reduction of 80-90% |
| Production Quality Control & Traceability | None | Pharmaceutical-grade full-process spatiotemporal traceability | Full coverage |
| Intelligent Management | None | Nine intelligent subsystems in coordinated operation | Overall leading |
| Supporting Consumables Supply | Independent procurement(complex and high risk) | Cost-effective supporting supply | More optimized |
| Mobility /Flexibility | Completely fixed and non-migratory | Detachable, movable and highly flexible | Qualitative leap |
Economic Analysis
Rom the perspective of life-cycle cost, the CIS offers significant economic advantages over traditional laboratory construction:
Initial construction cost:
The prefabricated construction model greatly reduces civil engineering and decoration expenses, resulting in lower initial investment.
Time value of construction:
The construction period is shortened from 3–4 months to 48 hours, enabling faster operation startup and a significantly shortened capital recovery cycle.
Operating energy cost:
Energy consumption is less than 1/10 of that of traditional laboratories, saving substantial electricity expenses annually.
Labor cost:
Operable by just one technician, reducing labor costs by 70–90% compared with the traditional 5–10-person team.
Expansion cost:
Modular and rapid expansion without production shutdown, avoiding revenue losses during the expansion period.
Residual Value Protection:
With a 99% reusability rate, investment residual value is preserved, resulting in extremely low exit costs.
Qualifications, Certifications and Honors
Product Qualifications and Certifications
| Certification Category | Certification Name / Content | Certification Significance |
|---|---|---|
| System Certification | CE Certification, FCC Certificate, and the triple certification of Environ-mental Management System (ISO 140o1), Quality Management System (ISO 9oo1), and Occupational Health and Safety Management System(ISO 45001) | Internationally recognized quality system certification, proving that the company's comprehensive management meets international standards. |
| Product Certification | Green Building & Energy-Saving Product Certification | Proving that the product complies with green and energy-saving stan-dards, supporting low-carbon construction. |
| Service Certification | Five-Star Service Certification | Demonstrating that the company's pre-sales and after-sales service capabilities meet high-standard requirements. |
| Cleanliness Test | Measured and verified by a third-party authoritative institution,meeting GMP Grade B+A standards. | Objective proof of the product's core performance, with legal validity. |
Intellectual Property Rights
The company possesses systematic independent intellectual property rights in the field of intelligent cell capsules, covering invention patents, utility model patents, and software copyrights:

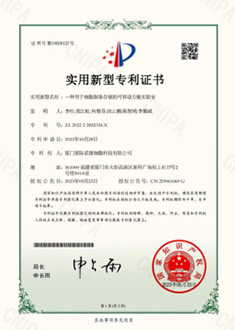

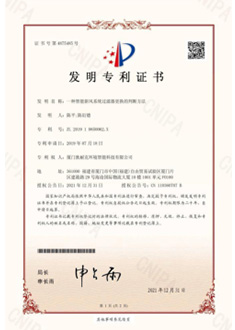

Granted Patents (Core Selection):
- A Mobile Shelter Laboratory for Cell Preparation and Storage

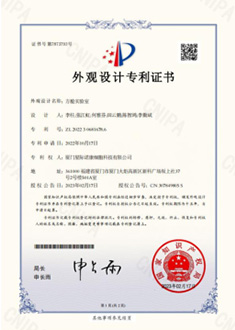

- Shelter Laboratory (Design Patent)
- An Intelligent Fresh Air System and Its Automatic Cleaning and Maintenance Method
- A Positive Pressure Intervention Device for Passive Building Fresh Air All-in-One Machine
- A Duct Maintenance and Sterilization Device for Fresh Air Systems
- A Judgment Method for Filter Replacement in Intelligent Fresh Air Systems
- An Integrated Display and Comparison Device for Fresh Air Systems

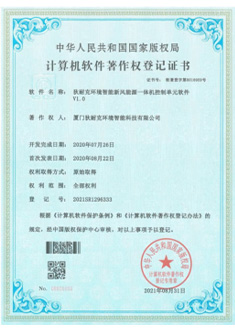

Software Copyrights (Core Selection):
- Software Copyright Certificate of the Control Unit Software for Fresh Air & Energy All-in-One Unit
- Software Copyright Certificate of the Fresh Air Management Platform
- Software Copyright Certificate for DAC-809 7-in-1 Intelligent Sensor Box Software
- Software Copyright Certificate of the Control Panel Software for Intelligent Fresh Air 608PM System Settings
